    fully enclosed exchange worktable fiber laser cutting machines

    Ask Lasest Price
    Brand Name : BOAO LASER
    Supply Ability : 30 Unit/Units per Month
    Price : $34,286.00/units 1-1 units
    • Product Details
    • Company Profile

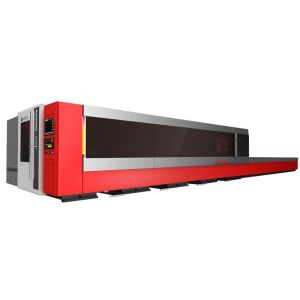

    fully enclosed exchange worktable fiber laser cutting machines

    Machines Introduction
    fully enclosed exchange worktable fiber laser cutting machines
    Worktable Type :
    Double Worktable Type
    Actual Cutting Size:
    3000x1500mm,4000x1500mm,4000x2000mm,6000x2000mm,8000x2000mm
    Cutting Thickness:
    <25mm
    Materials :
    Steel,Al, Brass,Alloy etc..
    Laser Power :
    6000W 12000W 20000W
    Delivery Time :
    45 Working Days
    Warranty &Service :
    2 Years
    Technical Parameters
    Model NO:
    BFC Series
    Laser Type
    CW FIber
    Laser Wavelength
    1060nm
    Laser Maximum Power
    6000W 12000W 20000W
    Max. Cutting thickness
    ≤22mm
    Total Power Consumption
    <38KW (380v/ 3Phase/50Hz/ 110A)
    Working Size
    3000*1500 mm/4000X2000MM/6000X2000MM/8000X2000MM
    Max.cutting speed
    0-30m/min(Depending on the material and thickness)
    X, Y, Z Axis Orientation Precision
    ≤±0.03mm/m
    X, Y, Z Axis Repeat Precision
    ≤±0.03mm /m
    Min line width
    ≤0.15mm
    Maximum Empty Running Speed
    120m/min
    Driving way
    Imported servo motor
    Transmission way
    Y-axis import gear rack double driver, X-axis imported ball screw
    Worktable Max Load
    12Tons
    Cooling System
    Water Cooling
    Continuous working time
    24 Hours
    Environment temperature
    0-35°C
    Power requirements
    380V/3 Phases /50Hz or 60Hz
